WB AL 1600 Series

Premium General Purpose Aluminum Access Doors

Sizes & Specifications

Buy Online

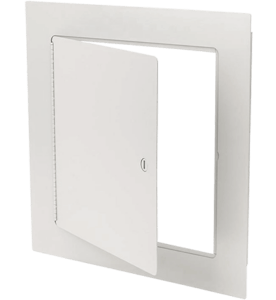

Williams Brothers - WB AL 1600 Series Premium Exterior Aluminum Access Door / Panel

Flush, Aluminum Panel is Ideal for Exterior or Interior Applications Where Moisture is a Concern!

The WB AL 1600 Series Premium Exterior Aluminum Access Door is a durable, flush access panel that ideal for wall or ceiling installation in exterior applications, and also interior applications where corrosion or moisture is a concern. Featuring light-weight, .063 aluminum construction with a white baked, paintable enamel finish, door comes with all aluminum hardware including aluminum hinges and aluminum cam latches. With a frame that is laser cut from one sheet of aluminum and no corner mitering, this door is aesthetically preferred by architects and building professionals alike.

Specifications

  • Door: .063 Lightweight Aluminum with Radius Corners
  • Frame & Trim: .063 Lightweight Aluminum, 1-5/16″ Wide Flange
  • Finish: White Baked Enamel, Paintable Surface
  • Latches: Flush, Aluminum Cam Latch (opens with screwdriver)
  • Hinges: Continuous Piano Hinge (allows opening to 180º)
  • Applications: Walls, Ceilings, Exterior Use

Options

  • Locks: WB Cylinder Lock (keyed alike with 2 keys per lock), Mortise Lock (with or without core)
  • Gasket: Weather-resistant Neoprene on 3 Sides
  • Custom Sizes: Available on Request

Features

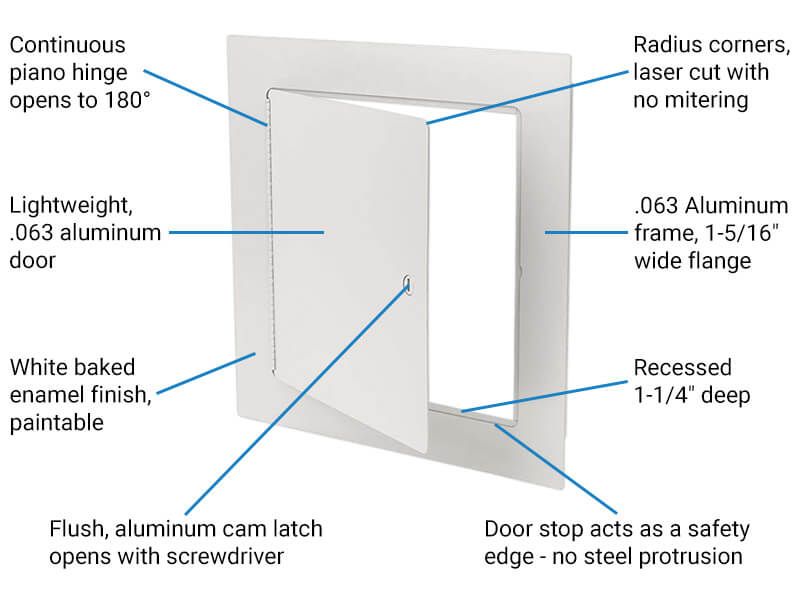

WB AL 1600 Features & Benefits

Description

The WB AL 1600 exterior access panel is available in a variety of sizes including 8×8, 12×12, 16×16, 18×18, 24×24 and more. In addition, custom sizes are available upon request. Door features a semi-concealed hinge, flush aluminum cam latches, gaskets, insulation, and an exposed flange. Options include cylinder locks and gaskets. For an insulated aluminum access door, see our WB AL 1500 Series.

Manufactured by The Williams Brothers Corporation of America. MADE IN VIRGINIA – USA.
