WB EXT 1400 Series

Louvered Access Panel with Rain Guards and Insect Net Lets Air In While Keeping Out Water and Bugs!

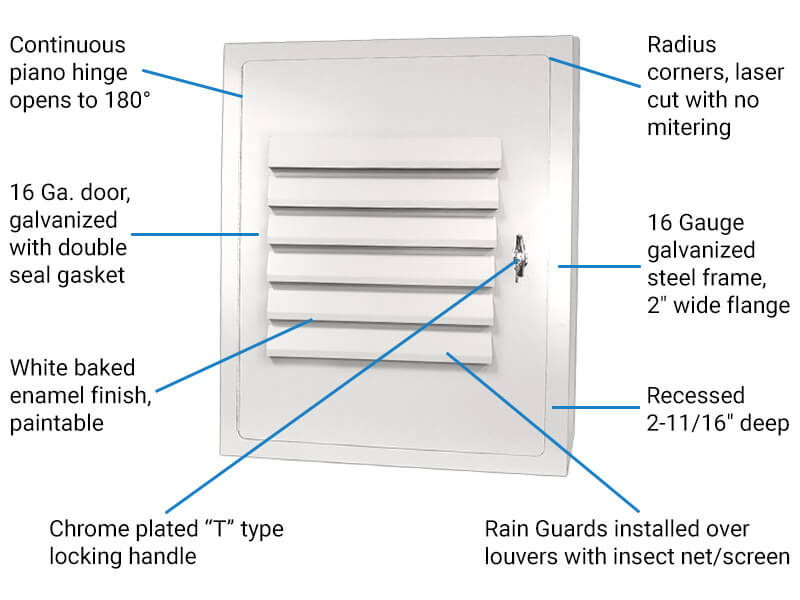

The WB EXT 1400 Vented Exterior Access Doors with Locking T-Handle is a durable, flush access panel designed for installation in exterior walls in applications where both weather resistance and security are required such as crawl space access doors. Featuring heavy-duty, 16 gauge rust resistive, galvannealed steel construction and a white baked, paintable enamel finish, door is one of the few vented exterior access panels in the industry that offers a pre-installed insect net/screen plus heavy-duty rain guards to ensure water or debris does not enter the louvers (certain saltwater areas might not be compatible).

Specifications

• Door: 16 Gauge Galvannealed Steel
• Frame & Trim: 16 Gauge Galvannealed Steel, 2″ Wide Flange
• Finish: White Baked Enamel, Paintable Surface
• Latches: Chrome Plated “T” Type Locking Handle with Pivot Rod 1 Point Catch (3 point catch on 18″ X 18″ and above) and WB Key Code Cylinder Lock
• Hinges: Continuous Piano Hinge
• Gasket: Weather Resistant, Double Seal Gasketing
• Rain Guards: Installed Over Louvers
• Insect Net/Screen: Pre-installed Insect Screen
• Application: Walls Only, Exterior Use

Options

• Finishes: Stainless Steel, Custom Colors
• Custom Sizes: Available on Request

Description

The WB EXT 1400 exterior access panel is available in a variety of sizes including 8×8, 12×12, 16×16, 18×18, 24×24 and more. In addition, custom sizes are available upon request. Door features a semi-concealed hinge, “T” handle lock, gaskets, rain guards, insect screen, and an exposed flange.

Manufactured for The Williams Brothers Corporation of America. MADE IN USA.
