WB Basic 300 Series Access Door Sizes & Specifications

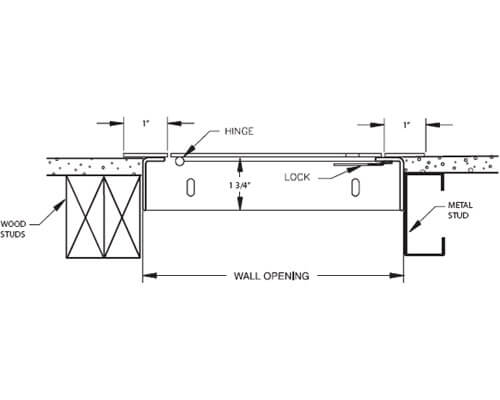

WB Basic 300 Series Access Door Dimension Drawing

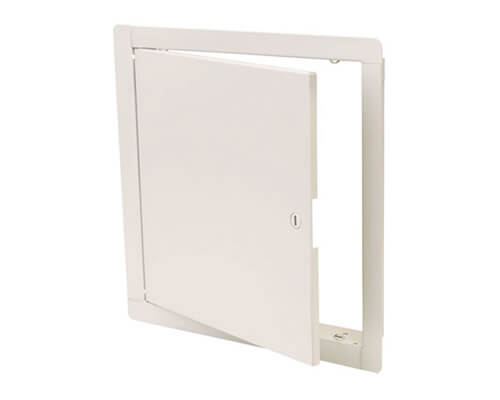

WB Basic 300 Access Door

Models

(Click on Model # to view product details)

Model Number Door Size Rough Opening Latches Shipping Weight Price
W x H W x H
WB BASIC 300 6X6 6" x 6" 6 1/4" x 6 1/4" 1 4 lbs. $12.95 Buy Now
WB BASIC 300 8X8 8" x 8" 8 1/4" X 8 1/4" 1 5 lbs. $13.95 Buy Now
WB BASIC 300 8X12 8" x 12" 8 1/4" X 12 1/4" 1 6 lbs. $29.99 Buy Now
WB BASIC 300 8X16 8" x 16" 8 1/4" x 16 1/4" 1 8 lbs. $32.00 Buy Now
WB BASIC 300 10X10 10" x 10" 10 1/4" x 10 1/4" 3 6 lbs. $15.95 Buy Now
WB BASIC 300 12X12 12" x 12" 12 1/4" x 12 1/4" 3 8 lbs. $17.95 Buy Now
WB BASIC 300 12X16 12" x 16" 12 1/4" x 16 1/4" 3 10 lbs. $35.99 Buy Now
WB BASIC 300 12X18 12" x 18" 12 1/4" x 18 1/4" 3 11 lbs. $40.14 Buy Now
WB BASIC 300 12X24 12" x 24" 12 1/4" x 24 1/4" 4 15 lbs. $48.95 Buy Now
WB BASIC 300 14X14 14" x 14" 14 1/4" x 14 1/4" 3 10 lbs. $22.95 Buy Now
WB BASIC 300 14X24 14" x 24" 14 1/4" x 24 1/4" 3 14 lbs. $50.95 Buy Now
WB BASIC 300 16X16 16" x 16" 16 1/4" x 16 1/4" 3 13 lbs. $26.95 Buy Now
WB BASIC 300 16X20 16" x 20" 16 1/4" x 20 1/4" 3 16 lbs. $40.89 Buy Now
WB BASIC 300 16X24 16" x 24" 16 1/4" x 24 1/4" 4 17 lbs. $51.20 Buy Now
WB BASIC 300 18X18 18" x 18" 18 1/.4" x 18 1/4" 3 14 lbs. $31.95 Buy Now
WB BASIC 300 18X24 18" x 24" 18 1/4" x 24 1/4" 4 18 lbs. $54.80 Buy Now
WB BASIC 300 18X36 18" x 36" 18 1/4" x 36 1/4" 5 29 lbs. $75.95 Buy Now
WB BASIC 300 20X20 20" x 20" 20 1/4" x 20 1/4" 3 17 lbs. $39.00 Buy Now
WB BASIC 300 20X24 20" x 24" 20 1/4" x 24 1/4" 4 21 lbs. $56.19 Buy Now
WB BASIC 300 20X30 20" x 30" 20 1/4" x 30 1/4" 4 23 lbs. $78.13 Buy Now
WB BASIC 300 22X22 22" x 22" 22 1/4" x 22 1/4" 4 22 lbs. $54.80 Buy Now
WB BASIC 300 22X24 22" x 24" 22 1/4" x 24 1/4" 4 23 lbs. $63.80 Buy Now
WB BASIC 300 22X30 22" x 30" 22 1/4" x 30 1/4" 4 25 lbs. $73.99 Buy Now
WB BASIC 300 22X36 22" x 36" 22 1/4" x 36 1/4" 5 32 lbs. $90.95 Buy Now
WB BASIC 300 24X24 24" x 24" 24 1/4" x 24 1/4" 4 24 lbs. $44.95 Buy Now
WB BASIC 300 24X30 24" x 30" 24 1/4" x 30 1/4" 4 27 lbs. $76.99 Buy Now
WB BASIC 300 24X36 24" x 36" 24 1/4" x 36 1/4" 5 35 lbs. $86.99 Buy Now
WB BASIC 300 24X48 24" x 48" 24 1/4" x 48 1/4" 6 43 lbs. $121.95 Buy Now
WB BASIC 300 30X30 30" x 30" 30 1/4" x 30 1/4" 6 32 lbs. $91.95 Buy Now
WB BASIC 300 30X36 30" x 36" 30 1/4" x 36 1/4" 6 39 lbs. $108.95 Buy Now
WB BASIC 300 32X32 32" x 32" 32 1/4" x 32 1/4" 6 35 lbs. $101.95 Buy Now
WB BASIC 300 36X36 36" x 36" 36 1/4" x 36 1/4" 7 44 lbs. $110.95 Buy Now
WB BASIC 300 36X48 36" x 48" 36 1/4" x 48 1/4" 8 57 lbs. $227.00 Buy Now
WB BASIC 300 48X48 48" x 48" 48 1/4" x 48 1/4" 12 70 lbs. $247.00 Buy Now
