WB UAD 200 Series

Utility 16 Gauge Access Doors

Sizes & Specifications

Buy Online

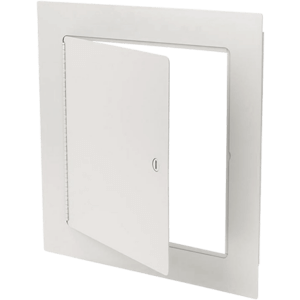

Williams Brothers - WB UAD 200 Series Utility Access Door / Panel

The Best Utility Access Panel in the Industry!

The WB UAD 200 16 Gauge Utility Access Door is a cost-effective, utility flush access panel designed for use in walls and ceilings. Featuring heavy-duty, 16 gauge galvanized steel construction with a white baked, paintable enamel finish, this utility access door is aesthetically preferred by architects and building professionals alike. In addition, door features a frame that is laser cut from one sheet of cold rolled steel with no corner mitering along with a full-length piano hinge that allows opening of the door to 180°.

Specifications

  • Door: 16 Gauge Steel with Radius Corners
  • Frame & Trim: 16 Gauge Steel, 1-3/4″ Wide Flange
  • Finish: White Baked Enamel, Paintable Surface
  • Latches: Flush, Stainless Steel Cam Latch (opens with screwdriver)
  • Hinges: Fully-concealed Piano Hinge (allows Opening to 180°)
  • Applications: Walls, Ceilings

Options

  • Finishes: Stainless Steel, Custom Colors
  • Locks: WB Cylinder Lock (keyed alike with 2 keys per lock), Mortise Lock (with or without core)
  • Gasket: Weather-resistant Neoprene on 3 Sides
  • Custom Sizes: Available on Request

Description

The WB UAD 200 metal access panel is available in a wide variety of sizes including 8×8, 12×12, 14×14, 16×16, 24×24, and more. In addition, custom sizes are available upon request. Door features radius corners, a fully-concealed hinge, stainless steel cam latches to prevent rust, and an exposed flange. Options include locks and gaskets plus stainless steel construction and custom colors. For a heavier gauge access panel, see our WB GP 100 Series.

Manufactured by The Williams Brothers Corporation of America. MADE IN VIRGINIA – USA.
