WB FD 8500-XL Series

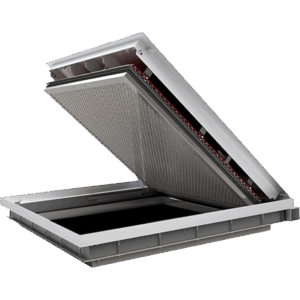

Flush, Fire-Rated Aluminum Diamond Plate Floor Hatch Comes in Oversized Dimensions!

The WB FD 8500-AL Series Oversized Flush Fire-Rated Aluminum Diamond Plate Floor Hatch is a rugged, flush access door designed for new or existing openings in interior utility and general purpose applications. Featuring an oversized door for larger openings, the WB FD incorporates the latest fire-resistant technology to protect floors above from fire below. Featuring a heavy-duty, 1/4″ reinforced aluminum cover and an aluminum/stainless steel thermal-break frame both with a mill finish, hatch is Warnock-Hersey tested for a 2 hour fire rating. In addition, it is reinforced for pedestrian traffic and can safely handle 300 pounds per square foot (psf) loading.

Specifications

• Cover: 1/4″ Reinforced Aluminum Diamond Plate
• Frame: 3″ x 3″ x 1/4″ Aluminum Top Frame with Thermal Break, 3-1/2″ x 2″ 11 Gauge Stainless Steel Bottom Frame and a 4″ x 1-3/8″ x 3/16″ Thick Fiberglass Channel Bolted to Top and Bottom Frames.
• Finish: Mill finish
• Handle: Cast Aluminum Flush Lifting Handle
• Latch: Stainless Steel Slam Latch with Interior Release
• Hinge: Type 316 Stainless Steel Continuous Piano Hinge
• Lift Assistance: Stainless Steel Compression Springs Contained Within the Door Assembly
• Automatic Hold-open Arm: Aluminum Hold-open Arm with Red Vinyl Grip Automatically Keeps the Cover in its Open/Upright Position at 90°
• Automatic Closing Mechanism:  Mechanism to Automatically Close and Latch the Cover When Heat Breaks a 165° F Fusible Link
• Fusible Link: UL-listed 165° F Fusible Link
• Hardware: 316 Stainless Steel Nuts and Bolts
• Loading: 300 psf (1465 kg/m2) Live Load
• Fire Rating: Warnock-Hersey Tested for a 2 Hour Fire Rating, Tested to NFPA 288 (ASTM E119)
• Installation: Door is designed for Dry, Interior Locations Only

Options

• Construction: Steel
• Custom Sizes: Available on Request

Description

The WB FD 8500-XL oversized fire-rated floor door is available in a variety of sizes including 48×60, 48×72, 60×60, 72×72, 80×80 and more. In addition, custom sizes are available upon request. Door features a flush lifting handle, slam latch, stainless steel hinges, automatic closing mechanism with a UL listed fusible link, stainless steel compression springs for lift assistance, and an automatic hold-open arm. Options include steel construction.

Manufactured for The Williams Brothers Corporation of America. MADE IN USA.
