24 x 24 Galvanized Steel Domed Roof Hatch – WB RH-D Series

$2,634.88

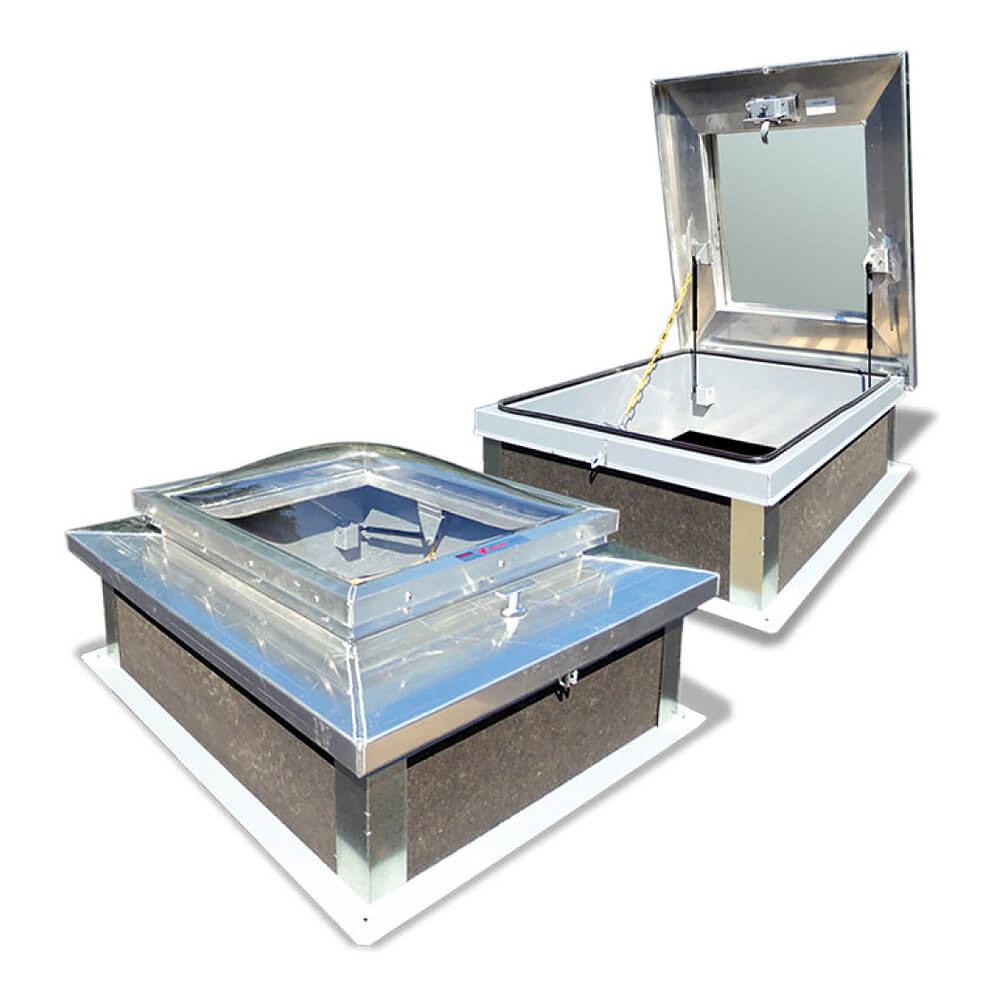

This rugged, roof access door is designed to provide secure, convenient and weather-resistant access onto roofs in applications such as hotels, apartments, hospitals, industrial facilities or any location where access to a ceiling/roof is necessary. Featuring heavy-duty, 14 gauge galvanized steel construction with a re-coatable gray primer finish, hatch is fully insulated and comes with a heavy-gauge extruded rubber gasket to keep out the exterior weather elements. In addition, the clear dome/skylight, allows natural sunlight to come into the space below while debris such as leaves, branches naturally fall off. MADE IN USA.

Most Orders Ship Same or Next Day!

Model #

WB RH-D 24X24

Series

WB RD-D

Door Size (WxH)

24" x 24"

Rough Opening (WxH)

24" x 24"

Shipping Weight

135 lbs.

Cover

14 Gauge Galvanized Steel Construction

Frame

14 Gauge Galvanized Steel Construction

Curb

1" Thick Fiberboard Roof Insulation at Curb Exterior

Dome

Clear Dome Allows Natural Light to Pass Through and Debris to Naturally Fall Off

Finish

Durable Re-coatable Gray Primer Finish

Handle

Heavy-duty Handle

Lock

Heavy-duty Lock

Hinges

Heavy-duty Galvanized Steel Hinges with 3/8" Pin

Lift Assistance

Gas Spring Operators Opens/Closes Cover with Ease While Inside Pull Handle Allows for Easy Control When Closing Cover

Gasket

Weather-resistant Gasket

Safety

Highly Visible Safety Caution Striping

Installation

No Assembly Required – Ships Complete with Curb, Insulation, and Gasket

Custom Sizes

Available on Request

WB RH-D Series Roof Hatch Dimension Drawing
