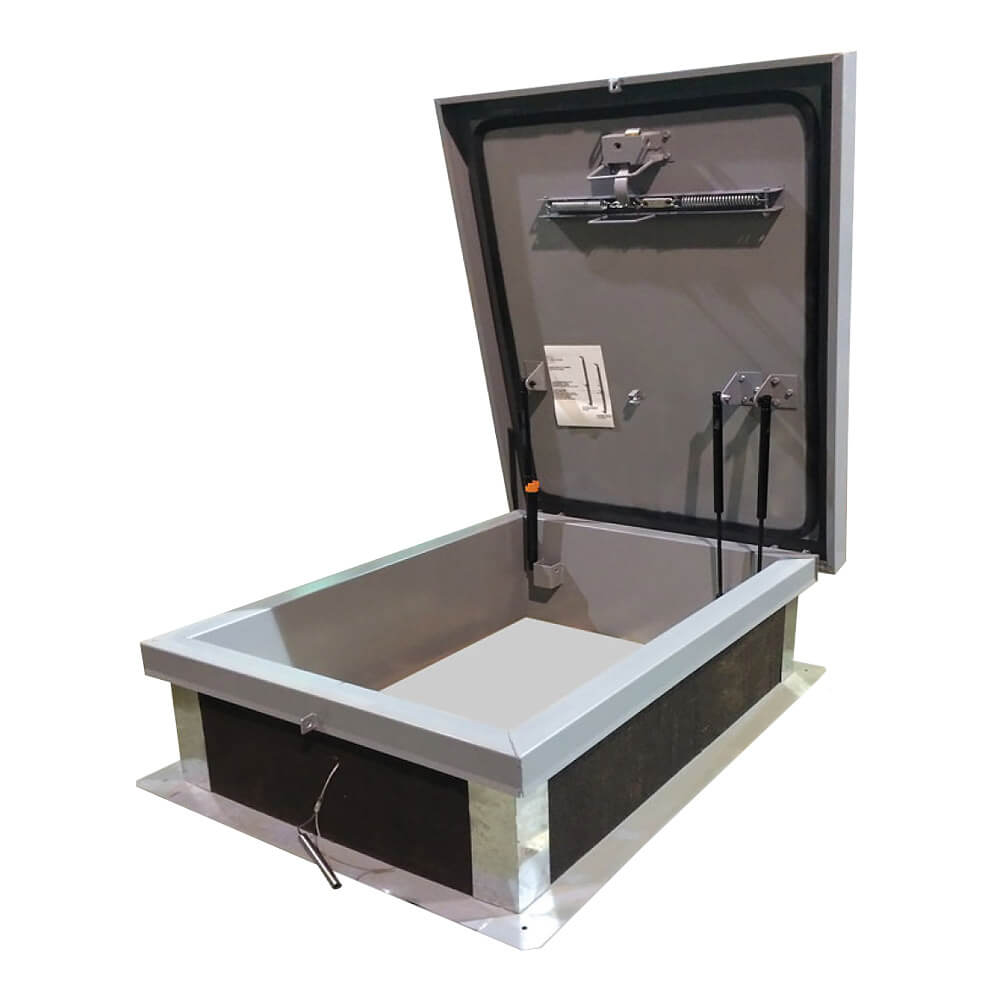

24 x 24 Galvanized Steel Automatic Smoke Vent – WB SVG Series

$3,000.00

This rugged, single leaf access hatch is designed to provide fire ventilation for areas where removing deadly smoke, heat, and gases is required from a burning building. Featuring heavy-duty, 14 gauge galvanized steel construction with a baked polyester enamel finish, smoke vent is fully insulated and comes with a continuous EPDM foam weather/draft seal gasket that is attached to the inside of cover to provide a flush fit ensuring weather protection. MADE IN USA.

Most Orders Ship Same or Next Day!

Model #

WB SVG 24X24

Series

WB SVG

Door Size (WxH)

24" x 24"

Rough Opening (WxH)

24" x 24"

Shipping Weight

135 lbs.

Cover

14 Gauge Galvanized Steel with a 22 Gauge Galvanized Steel Inside Liner – Double-skin construction (in box type design) with 1 cellulose insulation and a continuous EPDM foam weather/draft seal gasket

Frame

14 Gauge G90 Galvanized Steel Construction

Curb

12" High Insulated Curb – 14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.

Finish

Baked Polyester Enamel Paint

Latch

Self-latching Slam Catch

Lift Assistance

High-performance Gas Spring Operators Allow Cover to Open and Close with Ease

Latch Release

Interior & Exterior Manual Releases

Gasket

Weather-resistant Gasket

Loading

Reinforced for 40 psf (195 kg/m2) Live Load

Custom Sizes

Available on Request

WB SRR-I 8600 Series Roof Hatch Dimension Drawing
