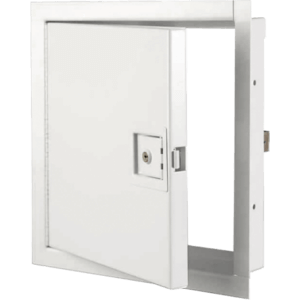

WB FRU 815 Ultra Series

Key Lockable Panel Offers Security & Fire Protection with Up to a 1-1/2 Hour Rating!

The WB FRU 815 Ultra Series Non-Insulated Fire-Rated Access Door with Key Lock is a durable, fire-rated flush access panel designed for wall installation in applications where fire resistance is required. Featuring a heavy duty, 16 gauge steel frame with a 16 gauge steel door and a white baked, paintable enamel finish, door is fire-rated for 1-1/2 hours.

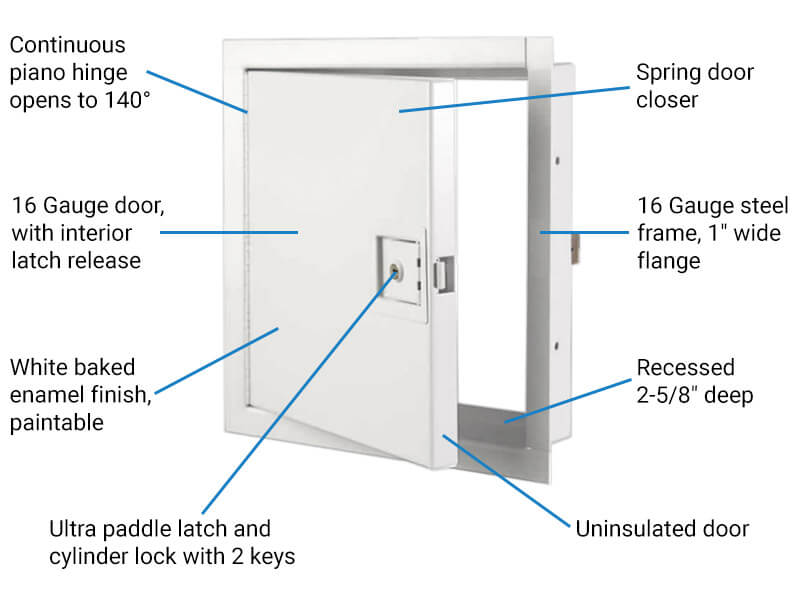

Specifications

• Door: 16 Gauge Steel, 2-5/8″ Deep
• Frame & Trim: 16 Gauge Steel, 4 Piece Welded, 1″ Wide Flange
• Finish: White Baked Enamel, Paintable Surface
• Latches: Paddle Style
• Locks: Paddle Latch Cylinder Lock ((keyed alike with 2 keys per lock)
• Hinges:  Continuous Piano Hinge (allows opening to 140°)
• Automatic Door Closer: Spring Closer
• Interior Latch Release: Allows Opening of Door from Inside
• Fire-Rating: UL Listed “B” Label for 1-1/2 Hours  – This Door May Be Used in a 2 Hour Fire Rated Wall Assembly
• Applications: Walls Only

Options

• Finishes: Stainless Steel, Custom Colors
• Gasket: Hot Smoke Seal on All 4 Sides (fire and smoke tested)
• Custom Sizes: Available on Request

Features

Description

The WB FR 815 Ultra fire-rated access panel is available in a variety of sizes including 8×8, 12×12, 14×14, 16×16, 24×24 and more. In addition, custom sizes are available upon request. Door features a semi-concealed hinge, an automatic spring closer and an exposed flange. For added security door includes our specially designed Keyed Ultra Lock, self-latching keyed cylinder paddle latch with an interior release so it can be opened from the inside. Options include hot smoke seal gaskets plus stainless steel construction and custom colors.

Manufactured for The Williams Brothers Corporation of America. MADE IN USA.
