WB GP 102 Series

Spring-Loaded Premium 14 Gauge Access Doors

Sizes & Specifications

Buy Online

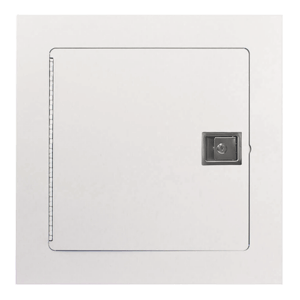

Williams Brothers - WB GP 102 Series Spring-Loaded Premium 14 Gauge Access Door / Panel

Self-Closing Access Panel Provides Added Safety & Security!

The WB GP 102 Series Spring-Loaded Premium 14 Gauge Access Door is a durable, general purpose flush access panel for wall and ceiling installation is perfect for applications such as elevator shafts or any environment where a self-closing access door is required. Featuring a heavy-duty, 14 gauge galvanized steel door and a white baked, paintable enamel finish, door offers spring loaded close assist and interior latch release. With a trim flange that is laser cut from one sheet of cold rolled steel, this access panel far surpasses other doors because the surround trim is welded on all four sides to the return frame providing strength and rigidity.

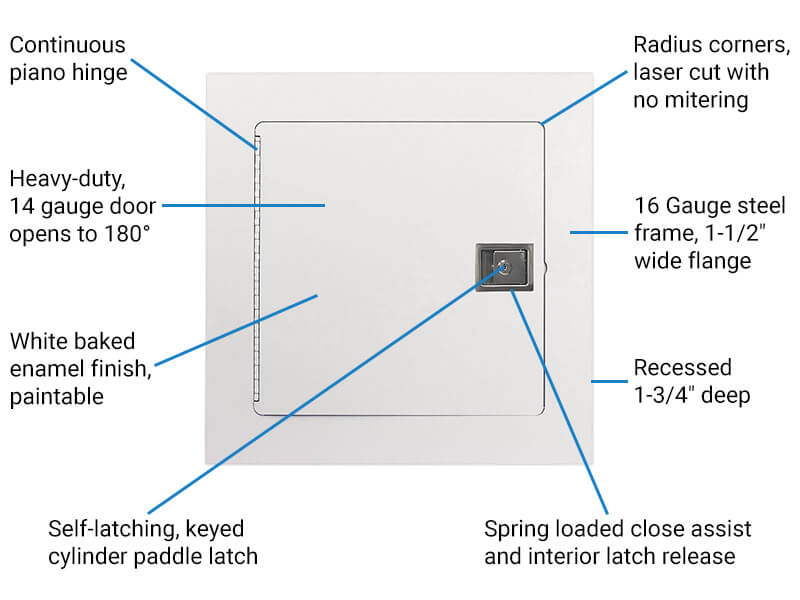

Specifications

  • Door: 14 Gauge Steel with Radius Corners
  • Frame & Trim: 16 Gauge Steel, 1-1/2″ Wide Flange
  • Finish: White Baked Enamel, Paintable Surface
  • Latches: Flush, Stainless Steel Cam Latch (opens with screwdriver)
  • Hinges: Continuous Piano Hinge (allows opening to 180°)
  • Automatic Door Closer: Vertical Position Only (ceiling position requires self-assisted closing)
  • Interior Latch Release: Allows Opening of Door from Inside
  • Applications: Walls, Ceilings

Options

  • Finishes: Stainless Steel, Custom Colors
  • Gasket: Weather-resistant Neoprene on 3 Sides
  • Custom Sizes: Available on Request

Description

WB GP 102 metal access panel is available in a wide variety of sizes including 8×8, 12×12, 14×14, 16×16, 24×24, and more. In addition, custom sizes are available upon request. Door features a radius corners, concealed hinge, stainless steel cam latches to prevent rust, and an exposed flange. Options include gaskets plus stainless steel construction and custom colors.

Manufactured by The Williams Brothers Corporation of America. MADE IN VIRGINIA – USA.
