BILCO TYPE Q Series

Angle Frame Steel Floor Hatches

Request Quote

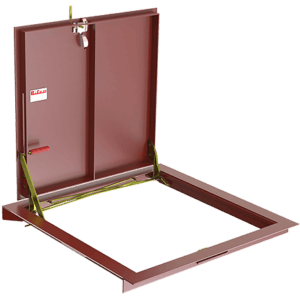

Williams Brothers - WB BILCO TYPE Q Series Floor Hatch / Door

Rugged, Steel Floor Hatch with Diamond Plate Cover!

Steel non-drainage single leaf covers are constructed of 1/4″ diamond pattern plate and reinforced for a 150 lb/ft2 (732 kg/m2) live load. Features zinc plated and chromate sealed hardware, concealed hinges, and the T-CAM® lifting system for ease of operation. By Bilco.

Specifications

  • Cover: 1/4″ Reinforced Steel Diamond-pattern Tread Plate
  • Frame: 1/4″ Steel Angle Frame with Strap Anchors Welded Around the Perimeter
  • Latch: Type 316 Stainless Steel Slam Lock with Fixed Interior Handle and Removable Exterior Turn/Lift Handle
  • Hinges: Concealed Cast Steel Cam-action Hinges
  • Lift Assistance: Torsion Bars that Pivot on Cam-action Hinges
  • Automatic Hold-open Arm: Automatic Hold-open Arm with Grip Handle Release
  • Hardware: Zinc Plated/Chromate Sealed
  • Loading: 150 psf (732 kg/m2) Live Load

Options

  • Custom Sizes: Available on Request

Models Available

  • Q1 – 24″ x 24″
  • Q2 – 30″ x 30″
  • Q3 – 30″ x 36″
  • Q4 – 36″ x 36″

Manufactured by Bilco for The Williams Brothers Corporation of America. MADE IN USA.
