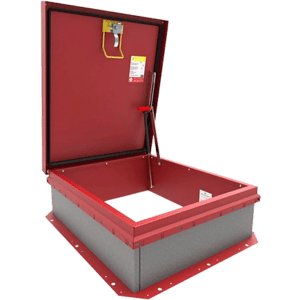

WB RH-HUR Series

Hurricane Rated, Miami Dade/Florida Approved Roof Hatch Offers Superior Weather Resistance!

The WB RH-HUR Series Hurricane Rated Steel or Aluminum Roof Hatch is a rugged, access door designed to provide secure, convenient and superior weather-resistant access onto roofs in applications such as hotels, apartments, hospitals, industrial facilities or any location where access to a ceiling/roof is necessary. Featuring heavy-duty, 14 gauge galvanized steel with a durable red-oxide powder coat finish or 11 gauge aluminum construction with a mill finish, hatch is fully insulated and comes with a heavy-gauge extruded rubber gasket to keep out the exterior weather elements.

Specifications

• Cover: 14 Gauge Galvanized Steel Construction or 11 Gauge Aluminum with 1″ Thick Polystyrene Insulation (40 psf live load)
• Frame: 14 Gauge Galvanized Steel or 11 Gauge Aluminum Construction
• Curb: Single Wall Curb with Railing Ready EZ Tab Counter-flash, Mounting Flange and 1″ Thick Polyiso R-6 Insulation
• Finish: Durable Red Oxide Powder Coat or Mill Finish
• Latch: Zinc Plated Steel Latch with Exterior and Interior Turn Handle and Padlock Hasp (tested to 140 psf wind uplift)
• Hinges: Heavy-duty Pintle Hinge with Stainless Steel Hinge Pin
• Lift Assistance: Gas Spring with Damper for Smooth, Controlled Lift Assistance
• Automatic Hold Open Arm: Zinc Plated Steel Automatic Hold Open Arm Locks Cover in Open Position
• Pull Handle: Interior Safety Pull Down Handle
• Gasket: Weather-resistant Extruded EPDM Gasket
• Certification: Florida Product Approval, Miami-Dade County Approved NOA# 21-1201.01, Expiration Date May 25, 2027
• Installation: No Assembly Required – Ships Complete with Curb, Insulation, and Gasket

Options

• Railings: See WB Roof Hatch Railing Systems
• Ladders: See WB Ladders & Safety Posts
• Custom Sizes: Available on Request

Description

The WB RH-HUR roof access door is available in a variety of sizes including 30×54, 30×72, 36×30, 36×36, 48×48 and more. In addition, custom sizes are available upon request. Door features a heavy-duty lock and handle assembly, automatic hold open arm and a fully concealed hinge hardware located on the interior making rust unlikely. In addition, this roof hatch includes gas springs with dampers for lift assistance and both interior and exterior padlock hasps to keep it secure from either the inside or outside.

Manufactured for The Williams Brothers Corporation of America. MADE IN USA.
