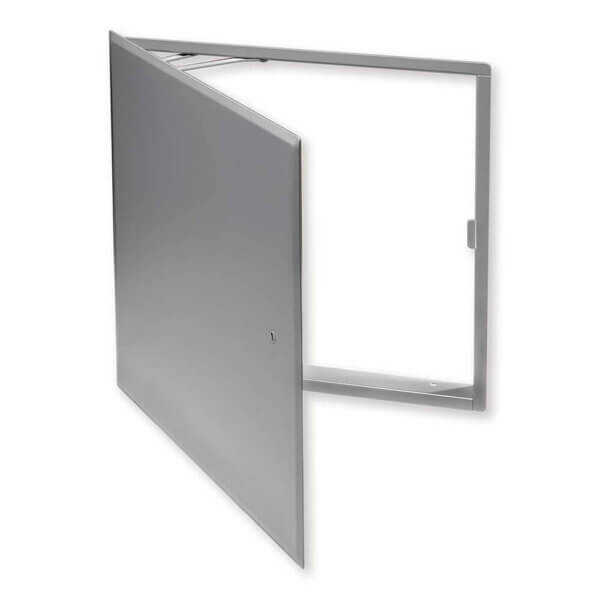

8 x 8 Hidden Flange Access Door – WB BP 350 Series

$18.95

This cost-effective, general purpose flush access panel for wall and ceiling installation is perfect for applications in high luxury areas such as condominiums, hotels, lobbies, and other areas where a modern and aesthetic appearance is desired. Featuring 16 gauge steel construction with a white baked, paintable enamel finish, door is suitable for installation in drywall, plaster, masonry, tile or any flush surface. Without the need to mud or tape over flanges, this door not only provides a hidden flange appearance, but it also saves money on labor as this door overlaps the return frame.

Most Orders Ship Same or Next Day!

Model #

WB BP 350 8X8

Series

WB BP 350

Door Size (WxH)

8" x 8"

Rough Opening (WxH)

8 3/8" X 8 3/8"

Number of Latches

1

Shipping Weight

4 lbs.

Door

16 Gauge Steel with Beveled Edge

Frame & Trim

16 Gauge Steel, 1-1/2" Wide Flange

Finish

White Baked Enamel, Paintable Surface

Latches

Flush, Stainless Steel Cam Latch (opens with screwdriver)

Hinges

Fully-concealed Hinge

Applications

Walls, Ceilings

Lock Options

WB Cylinder Lock (keyed alike with 2 keys per lock)

WB BP 350 Series Access Door Dimension Drawing
