12 x 12 – Press-Fit Drywall Access Door – WB DW-PF 705 Series

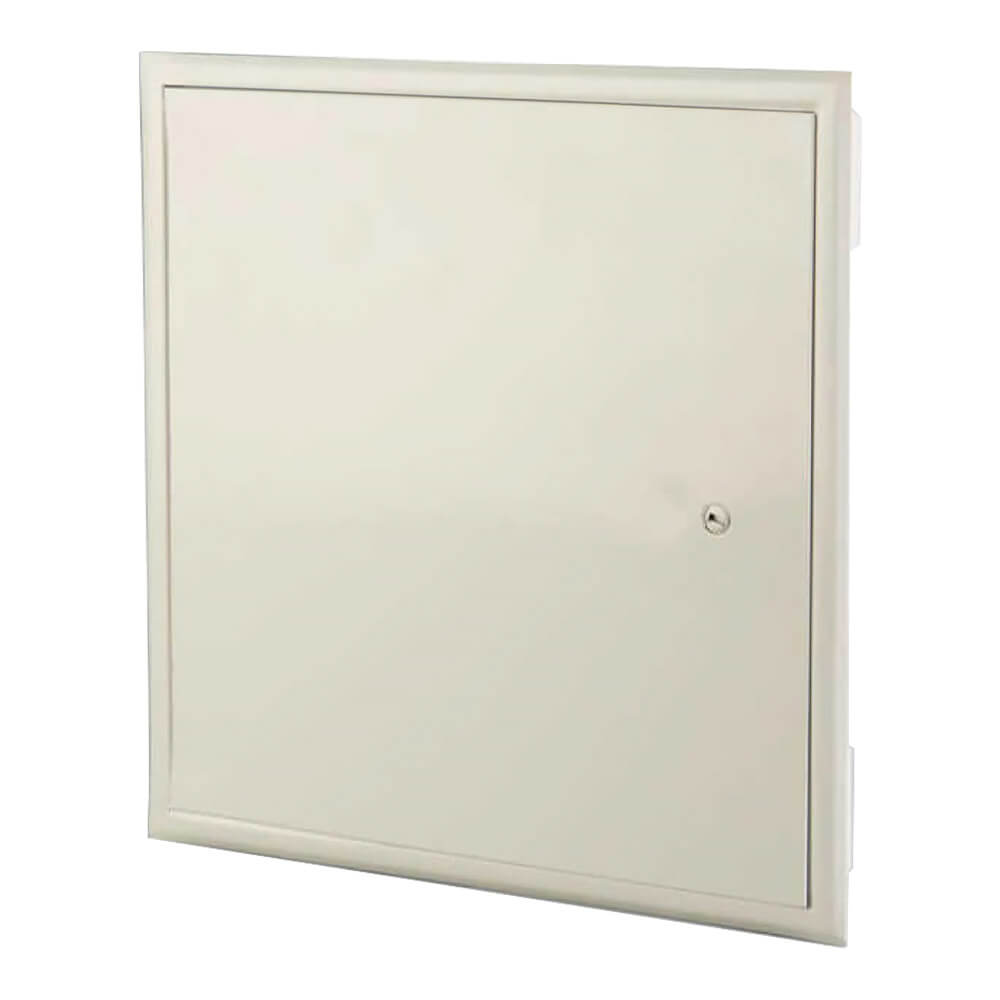

WB DW-PF 705 Series Press-Fit Drywall Access Door / Panel

$31.20

This unique, flush access panel is designed for installation drywall walls and ceilings in applications where ease of installation and an attractive look are desired. Featuring a lightweight, 20 gauge steel door and a white baked, paintable enamel finish, door installs easily by bending the tabs on the return back to grip the drywall. In addition, the frame, return and doorstop are one-piece construction with a beveled frame resulting in an attractive finished look. MADE IN USA.

Model #

WB DW-PF 705 12X12
Series

WB DW-PF 705
Door Size (WxH)

12" x 12"
Rough Opening (WxH)

11 3/16" x 11 3/16"
Number of Latches

1
Shipping Weight

2.5 lbs.
Door

22 Gauge Steel
Frame & Trim

22 Gauge Steel, 1" Wide Flange
Finish

White Baked Enamel, Paintable Surface
Latches

Flush, Stainless Steel Cam Latch (opens with screwdriver)
Hinges

Concealed, Continuous Piano Hinge
Applications

Walls, Ceilings
Latch Options

Locking T-Handle, Non-locking Paddle Latch
Lock Options

Cylinder Lock (keyed alike with 2 keys per lock), Mortise Lock (with or without core)
Custom Sizes

Available on Request
WB DW-PF 705 Series Access Door Dimension Drawing

WB DW-PF 705 Series Submittal
