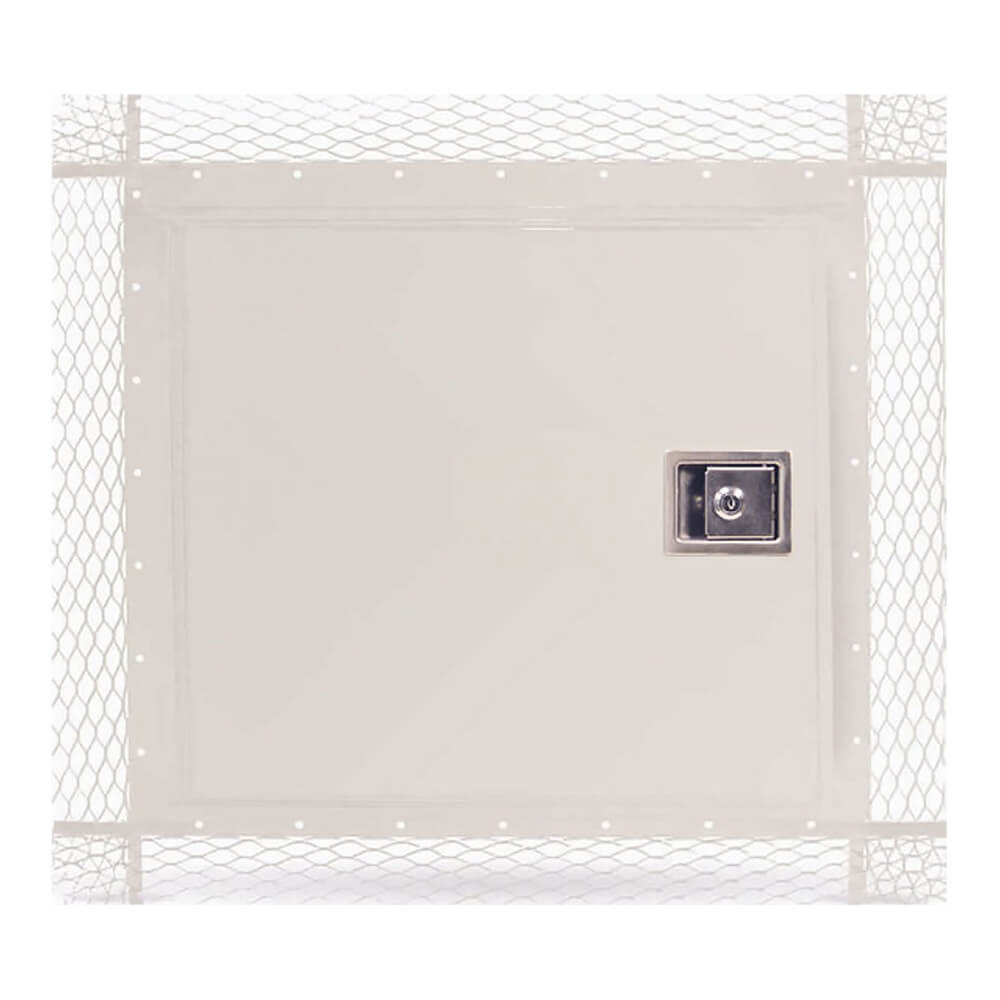

8 x 8 Exterior Stucco Access Door – WB EXT-PL 1450 Series

$134.95

This durable, flush access panel is designed for installation in exterior stucco walls and ceilings in applications where a concealed appearance is desired. Featuring an 18 gauge galvanized steel construction and a white baked, paintable enamel finish, door includes a weather and water resistant gasket plus 2” thick insulation with a R-Value of 5.0. In addition, with its concealed tape-in flange, door eliminates the visual distraction created by projecting, surface-mounted units. MADE IN USA.

Most Orders Ship Same or Next Day!

Model #

WB EXT-PL 1450 8X8

Series

WB EXT-PL 1450

Door Size (WxH)

8" x 8"

Rough Opening (WxH)

8 3/8" X 8 3/8"

Number of Latches

1

Shipping Weight

5 lbs.

Door

18 Gauge Galvanized Steel

Frame & Trim

18 Gauge Galvanized Steel, 1/4″ Wide Safety Edge

Plaster Bead

3" Wide 22 Gauge Galvanized Casing Bead and Expanded Metal Lath (the space from the expanded flange to the 1/4" safety edge of the door will accommodate 3/4" of plaster/stucco)

Finish

White Baked Enamel, Paintable Surface

Latches

Paddle Style

Locks

Paddle Latch Cylinder Lock (keyed alike with 2 keys per lock)

Hinges

Continuous Galvanized Piano Hinge (allows opening to 180°)

Insulation

Double layer of 1" GreenGuard® Extruded Polystyrene Insulation Board (R-Value @ 75° F Mean 5.0 x 2, FM approved)

Gasket

Weather Resistant, Double Seal Gasketing

Applications

Exterior Use, Walls, Ceilings

Custom Sizes

Available on Request

WB EXT-PL 1450 Series Access Door Dimension Drawing
