WB FR-RDW 860 Series

Recessed Drywall Fire Rated Access Doors for Walls

Sizes & Specifications

Buy Online

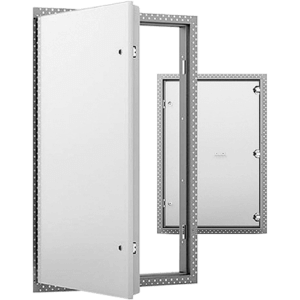

Williams Brothers - WB FR-RDW 860 Series Recessed Drywall Fire-Rated Access Doors for Walls

Pre-Installed Drywall Panel Provides a Seamless Appearance That Blends in With Existing Wall!

The WB FR-RDW 860 Series Recessed Drywall Fire-Rated Access Door for Walls is a durable, fire-rated recessed access panel designed for installation drywall walls in applications where fire resistance and a fully-concealed appearance is required. Featuring 22 gauge steel construction with a satin coat finish, door is fire-rated for 1 1/2 hours in vertical installations. In addition, door is shipped with a 5/8″ fire-rated drywall panel pre-installed and along with its concealed, a tape-in flange, is perfect for luxury areas where matching the door panel to its surroundings is desired.

Specifications

  • Door: 22 Gauge Steel with 5/8″ Fire-Rated Drywall Pre-installed
  • Frame & Trim: 22 Gauge Steel
  • Casing Bead: 1″ Wide, Perforated 22 Gauge Galvanized Drywall Flange
  • Finish: Satin Coat Steel
  • Latches: Self-latching Bolt
  • Lock: Flush, Knurled Knob Lock with 1 Key
  • Hinges:  Fully-concealed Hinge
  • Automatic Door Closer: Spring Closer
  • Interior Latch Release: Allows Opening of Door from Inside
  • Fire Rating – Walls: UL Listed “B” Label for 1-1/2 Hours (vertical installation) – This Door May Be Used in a 2 Hour Fire Rated Wall Assembly
  • Applications: Walls Only (for Ceilings see Model FR-RDW 870)

Options

  • Custom Sizes: Available on Request

Description

The WB FR-RDW 860 fire-rated access panel is available in a variety of sizes including 12×12,16×16, 18×18 24×24 and 24×36. In addition, custom sizes are available upon request. Door features a fully-concealed hinge and mud-in drywall flange. In addition, this self-closing and locking panel includes an automatic spring closer, knurled knob lock with a removable key and an interior release so it can be opened from the inside.

Manufactured for The Williams Brothers Corporation of America.
